Station Configuration...Logger Channels [Control Menu]

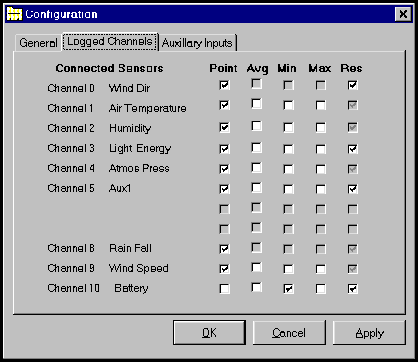

The Logged Channels tab of the Station Configuration dialog box is used to select which Weather Station channels will be logged, the type of reading that will be made. You can select Point, Average, Minimum and Maximum reading for each channel and set each channel to Standard Resolution or High Resolution.

Point Readings are the exact value read from the channel at the end of a Logging Interval.

Average Readings are the average of readings taken every 10 seconds during the Logging Interval.

Maximum Readings are the maximum of readings taken every 10 seconds during the Logging Interval.

Minimum Readings are the minimum of readings taken every 10 seconds during the Logging Interval.

Standard Resolution records all readings in 8 bit mode. This option is used to reduce the size of the stored data and allow for a longer running period between data down loads.

High Resolution records all readings in 16 bit mode. This option is used where more accuracy is required than can be provided in Standard Resolution mode.
